Pioneer A-70-s
Class D amplifier
High-End

Pioneer A-70-s

SKU: 0820-700-012
CHF710.00Price

  • Impressive, that's the word.

    At Woodio.ch, we're trained to hear, repair and review vintage amplifiers, Pioneer is something we know. We don't have lots of gear younger than 20 yo on the bench. This is an exception.

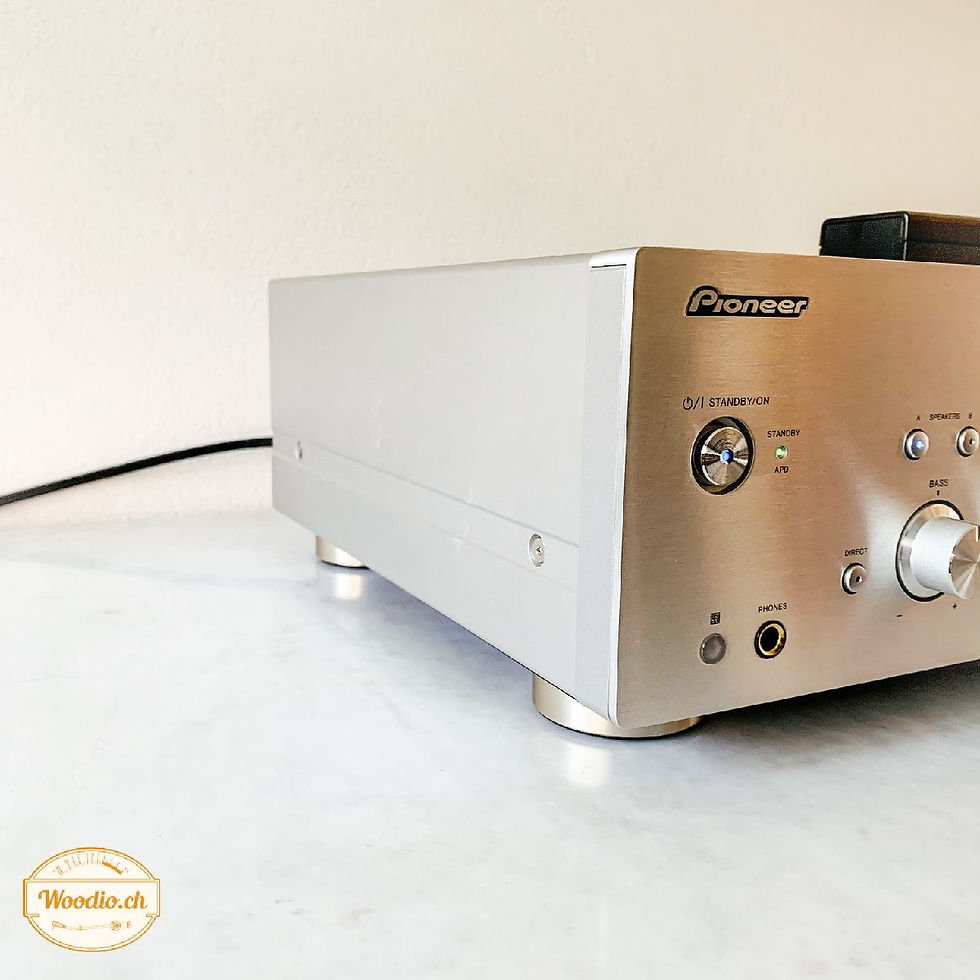

    First, this weighs a ton, the build quality is very good, everythng inside is separated, isolated, well built. Outside, a massive construction made of real aluminium knobs, aven the top cover is heavy.

    This amplifier is a Class D with a power of 2x90W (4 Ohms). The DAC is the very well known ESS Sabre 32, and the sound calibration was performed by the AIR Studios, which gives an idea of the possibilities of this machine.

    Designed to make the digital sources sound awesome, the phono part is outstanding. Offering a MM/MC capability, the result is great.

    In conclusion, this is an amplifier for the music lovers, looking for a great unit to run their speakers with respect to the support.

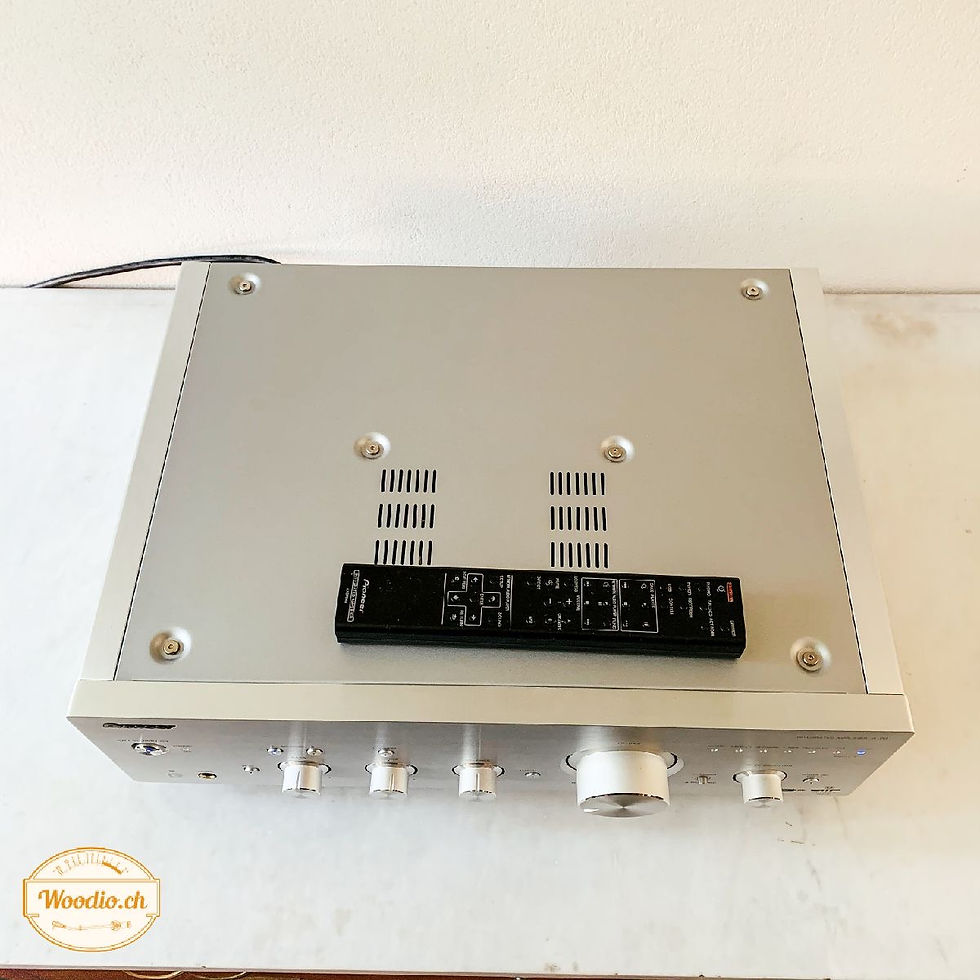

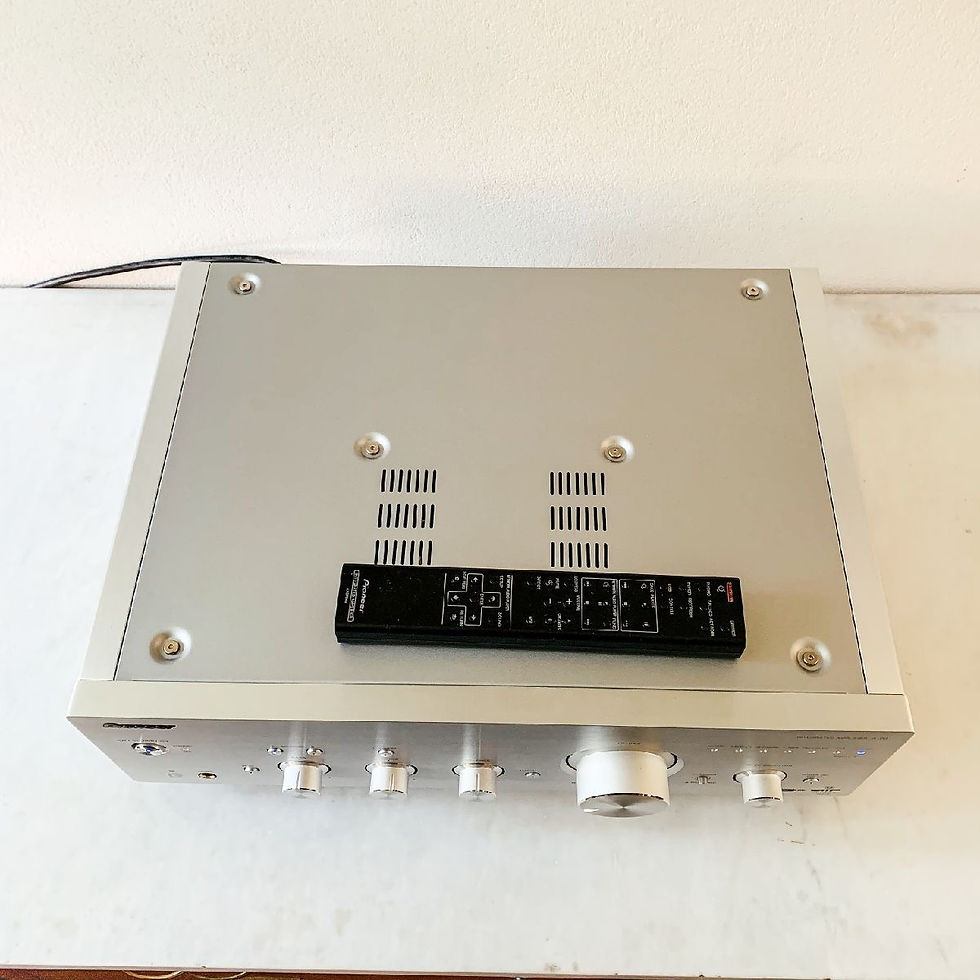

    It comes with all the original manuals, remote control, box, ...

  • DESIGN & BUILD

    Pure Audio Grade High Efficiency Power MOSFET Amplifier (High-Fidelity Class D Amplifier)

    Preamplifier with Fully-Balanced Circuitry

    Separated Construction for Preamp and Power Amp

    Source Direct Mode

    Highly Acclaimed ESS SABRE32 Ultra DAC

    84 kHz/32-bit USB-DAC for Asynchronous Transfer

    Shielded Twin Transformer for Preamp and Power Amp

    Trans-Stabilizer

    Speaker A, B, A+B Selector

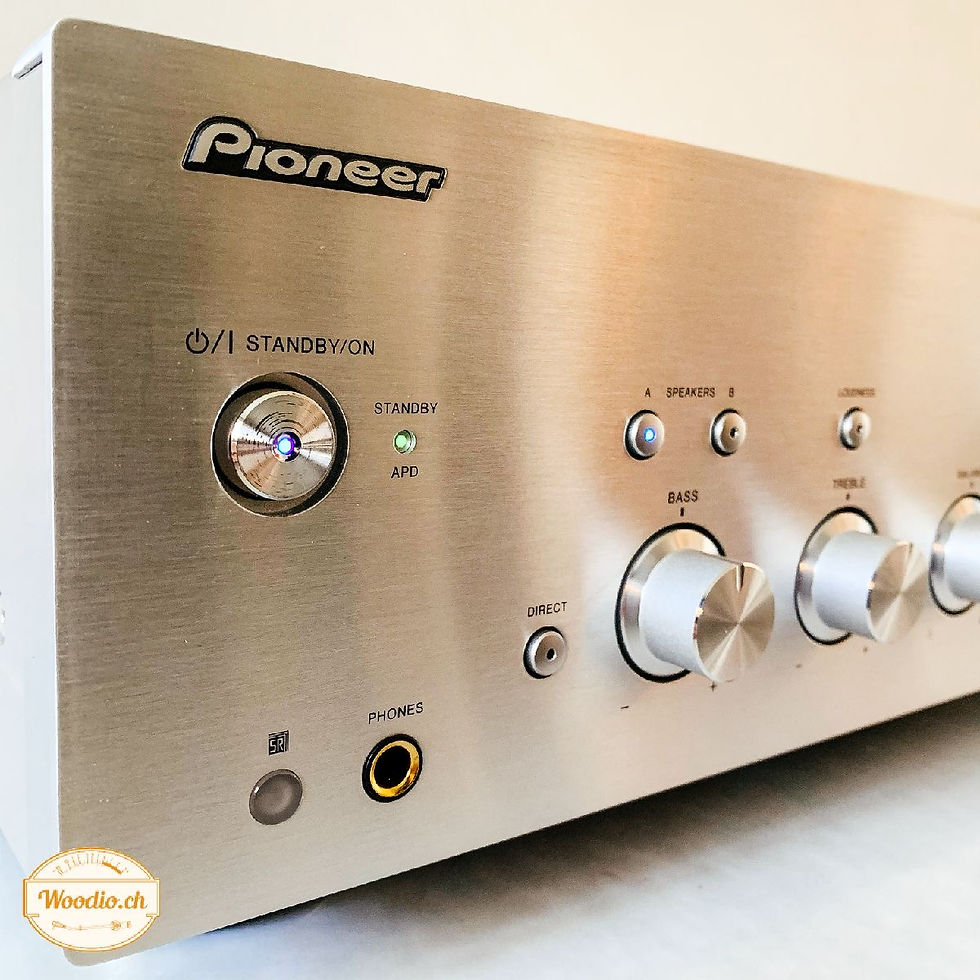

    Machine-Cut Aluminium Rotary Knob

    Aluminium Front/Side Panels

    •
    • Auto Power Down
    •
    • High-Grade AC Power Cord
    •
    • Rigid Under Base
    •
    • Aluminium Hair Line Finish Remote Controller

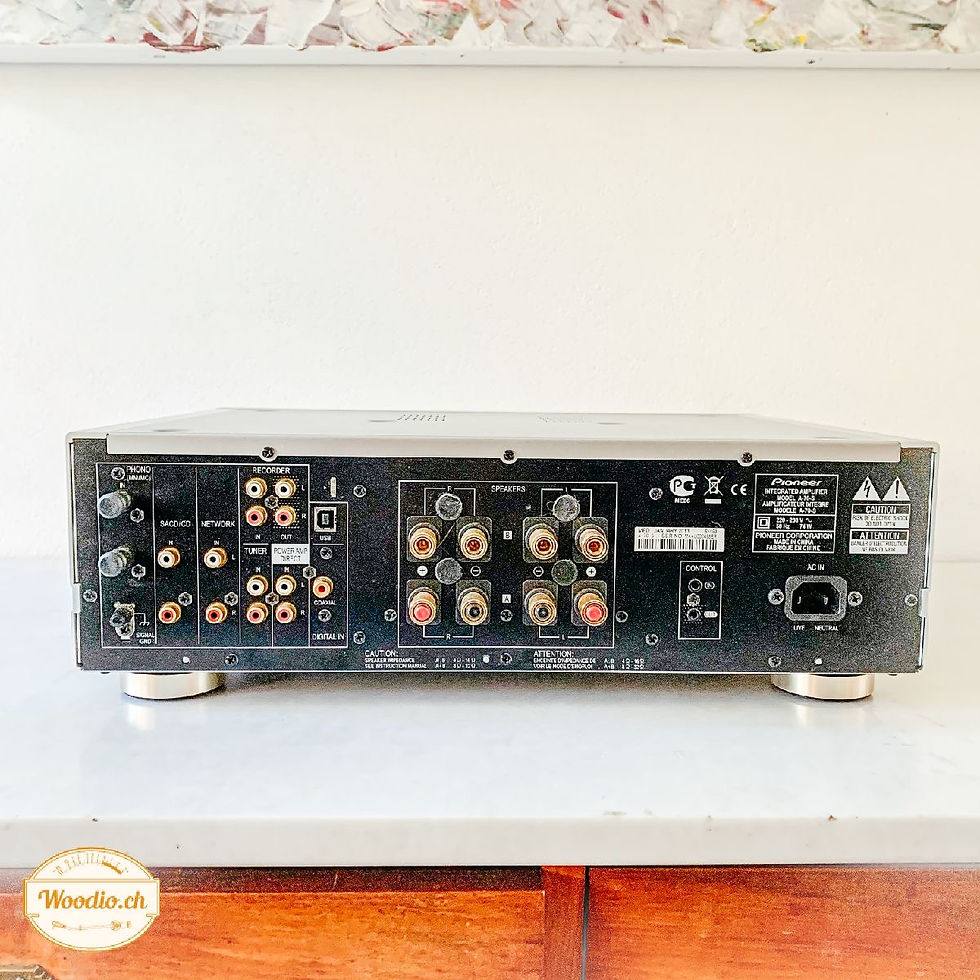

    CONNECTIONS

    Analogue Balanced Input (XLR3)

    Exclusive Gold-Plated Speaker Terminals (Extra-Large Type)

    Gold-Plated Analogue Audio Input (Phono MM/MC, SACD/CD, LINE 1, LINE 2, NETWORK, USB, COAXIAL, POWER AMP DIRECT IN)

    USB Input for Asynchronous Transmission

    Digital Coaxial Input

    Digital Optical Input

    Audio Output (LINE 2, PHONES)

    SR In/Out

    AC Inlet (Large Type)

    SPECIFICATIONS

    90W + 90W (20Hz-20kHz,THD0.5%,4ohms)

    THD: 0.02 % (Rated Output -3 dB, 8 ohms, 1 kHz)

    Guaranteed Speaker Impedance: 4-16 ohms (A or B), 8-32 ohms (A+B), 4-16 ohms (Bi-Wiring)

    Frequency Response (Measured with DIRECT button switched on): SACD/CD, NETWORK, LINE1, LINE2 5 Hz-50 kHz, ±3 dB

    RIAA Deviation: PHONO MM 20 Hz-20 kHz, ±0.5 dB, PHONO MC 20 Hz-20 kHz, ±0.5 dB

    Signal-to-Noise Ratio (IHF, A Network, Short Circuited)

    • SACD/CD: 101 dB, Phono: 89 dB (MM: 5 mV input)/ 74 dB (MC: 0.5 mV input), Power Amp Direct: 110 dB



    • Channel Separation



      • SACD/CD: 90 dB (100 Hz), 84 dB (1 kHz), 75 dB (10 kHz)
      • Power Amp Direct: 95 dB (100 Hz), 95 dB (1 kHz), 80 dB (10 kHz) › Power Requirements: AC 220-230 V, 50 Hz

      Power Consumption: 74 W

      Power Consumption During Standby: 0.3 W

      Dimensions(WxHxD):435x141.5x370mm

      Weight: 17.2 kg
