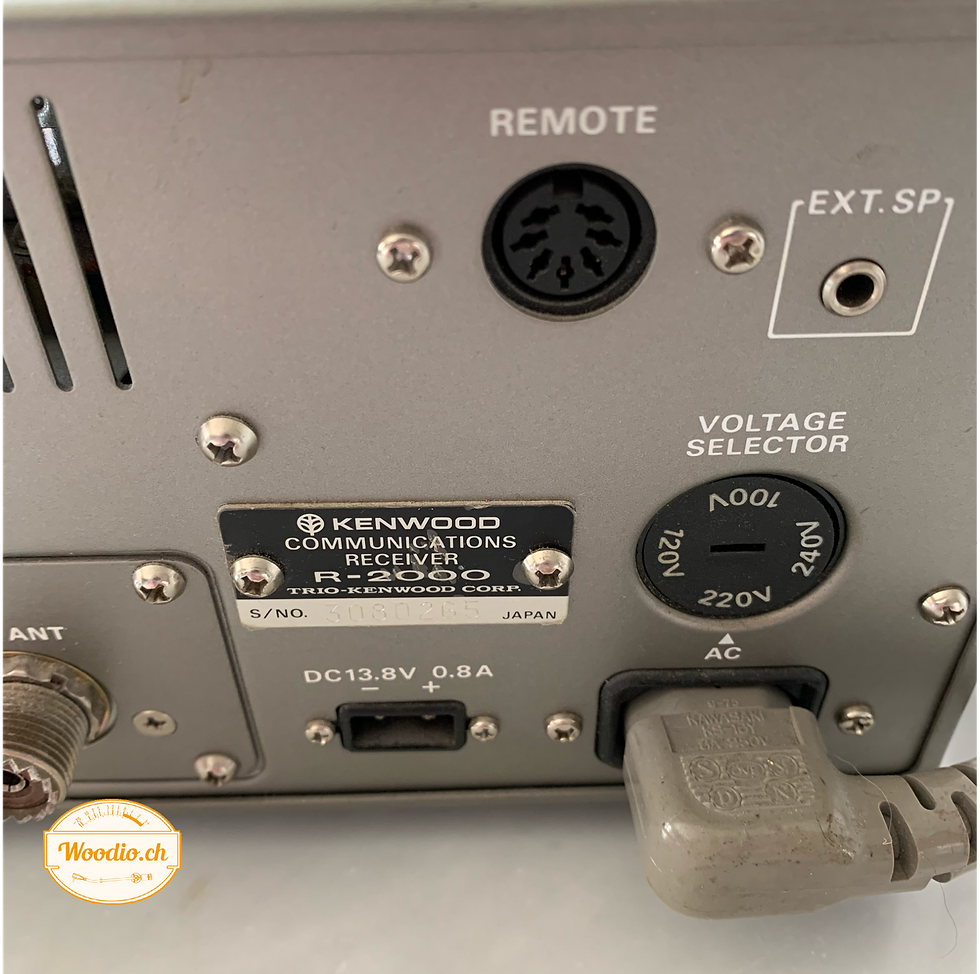

Kenwood R-2000

Kenwood built a big variety of devices. This communication receiver is one of the units they made to listen to the whole frequency range.

It has AM, FM, SSB, CW, with a frequency range of 0.15-30 MHz and 118-174 MHz. It opens a wide range of listening possibilities.

The unit was tested, cleaned, and it runs. If you own the right antennas, you'll be able to discover lots of things...

Type:	HF (VHF) receiver
Frequency range:	0.15-30 MHz (118-174 MHz option)
Tuning steps:	50 / 500 Hz, 5 KHz
Mode:	AM/FM/SSB/CW
Channels/memory management:	10 regular
Power supply:	Mains: 100 / 120 / 220 / 240 VAC (13.8 VDC option)
Current drain/power consumption:	14 W (no signal) @ mains 600 mA (no signal) @ 13.8 VDC
Antenna impedance/connector:	50-75 ohms / SO-239 500 ohms / Spring terminals
Dimensions (W*H*D):	375*115*210 mm (14.76*4.53*8.27")
Weight:	5.5 Kg (12.13 lbs)
Other features:	Four-step attenuator: 0-10-20-30 dB. Dual clocks with timer. Tone control. Slow/Fast AGC selector. NB. Dimmer. All mode squelch circuit. Scanning.
RECEIVER SECTION
Receiver system:	Triple conversion superheterodyne 1st IF: 45.9 MHz 2nd IF: 9.9 MHz 3rd IF: 455 KHz
Sensitivity:	AM (10 dB S+N/N): 0.15-2 MHz <20 uV, 2-30 MHz <4 uV FM (20 dB S+N/N): 2-30 MHz <1 uV SSB/CW (10 dB S+N/N): 0.15-2 MHz <2 uV, 2-30 MHz <0.4 uV
Selectivity:	AM-Wide: 6 KHz (-6 dB), 18 KHz (-50 dB) AM-Narrow: 2.7 KHz (-6 dB), 5 KHz (-50 dB) FM: 15 KHz (-6 dB), 30 KHz (-50 dB) SSB/CW: 2.7 KHz (-6 dB), 5 KHz (-50 dB) CW-Narrow: 500 Hz (-6 dB), 820 Hz (-60 dB) with optional YG-455C CW filter
Image rejection:	>70 dB
AF output power/speaker:	1.5 W at 10% distortion / 8 ohms
External speaker connector:	3.5 mm, 4-16 ohms
